Autodesk Inventor Tips: Temporarily Disable Inferred Constraint & Close Sketch
Recently we posted ‘Autodesk Inventor Tip: Tangent Constraint and Scrub Geometry‘ and now we are sharing two new tips from our “120 Autodesk Inventor Tips” vault.
Our Autodesk Subject Matter Expert from i GET IT Learning created these 120 short tech tips to present at Autodesk University. We have shared the first four tips in PLM Tech Talk, but to get full access to all of our i GET IT Tech Tips and Training Courses, Sign Up to i GETIT for an in-depth online learning courses from i GET IT.
120 Autodesk Inventor Tips –
#5 Temporarily Disable Inferred Constraint
In some cases the inferred constraint feature can get in the way and apply a constraint you don’t want, especially if you have a complex sketch.

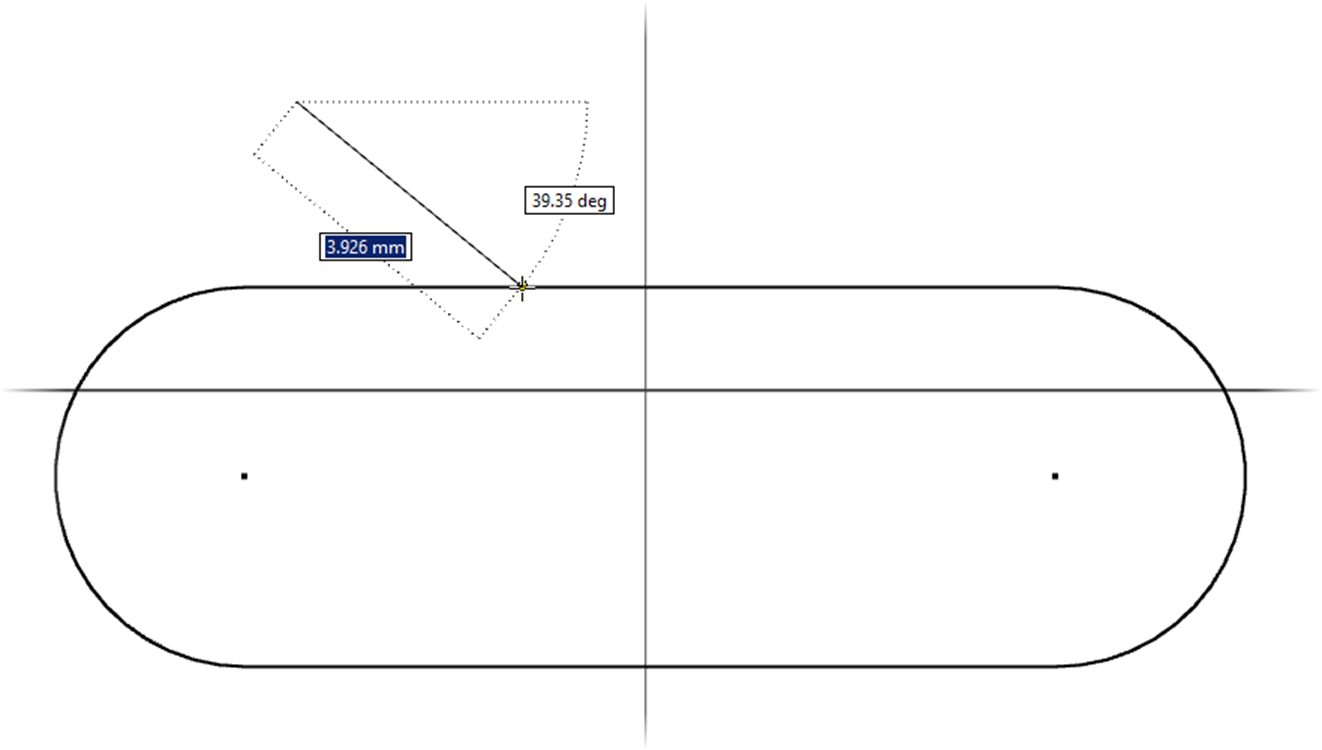

To temporarily disable the inferred constraint feature, while active in a sketch command, hold the Ctrl key on the keyboard.
#6 Close Sketch
You can automatically close a sketch while active in the Line command.
Follow these steps:

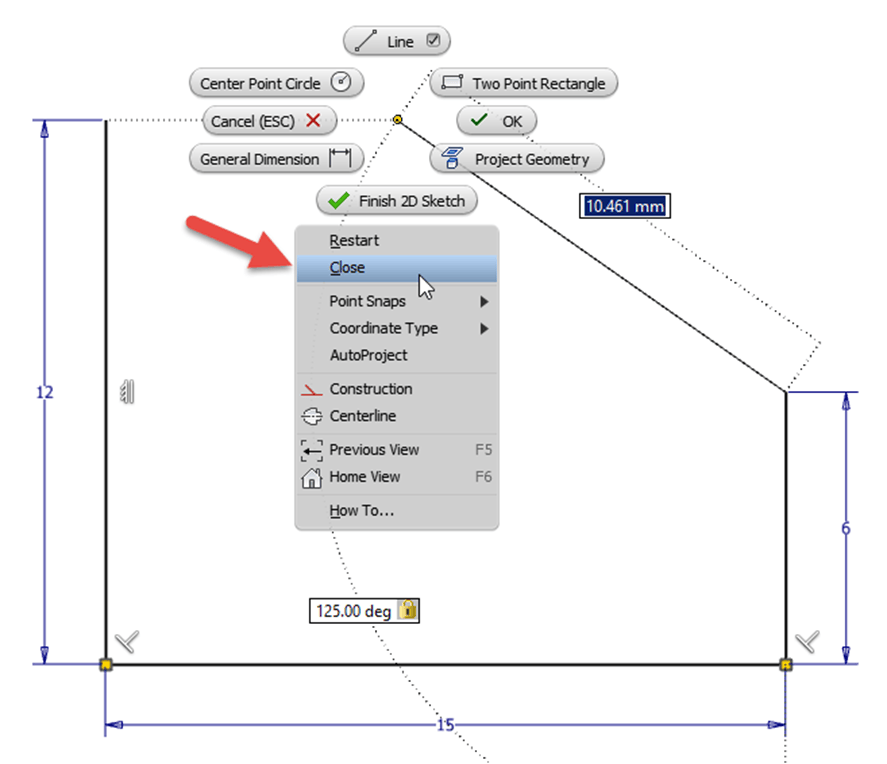

While Line command is active Right-click in the graphics window.
Select Close from the Marking Menu Overflow Menu

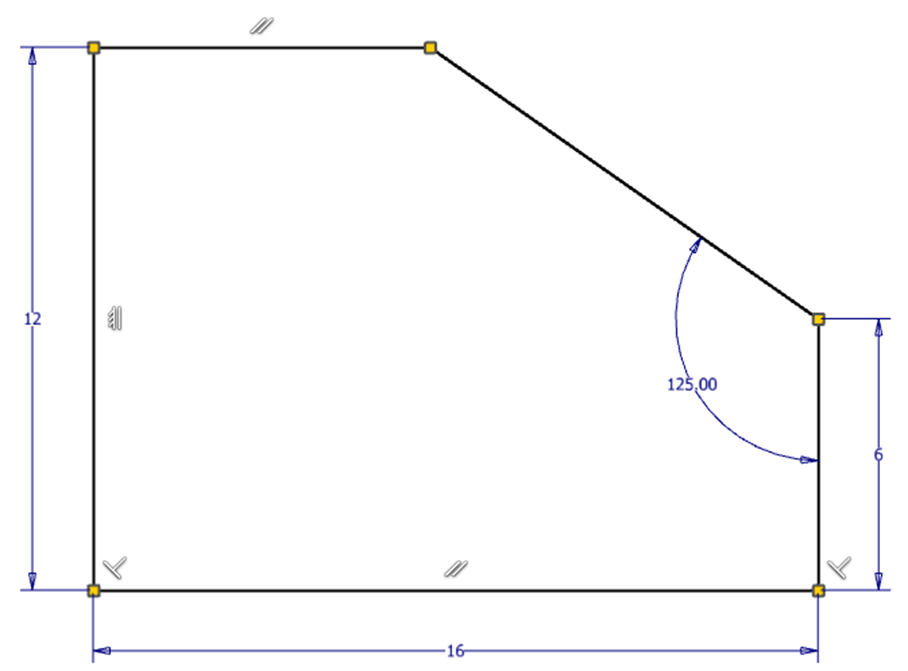

Closed loop profile is created
Now you know how to use Temporarily Disable Inferred Constraint and Close Sketch! but you can get early access to all of our Tech Tips in i GET IT Tech Tip Library by Signing Up and tick 7 day free trial and gain access to our in-depth online learning courses.
For more tech tips and in-depth eLearning for Autodesk Inventor, including new courses on other design solutions, please visit https://www.myigetit.com to explore more information or Just choose appropriate subscription plan to get started! If you should have any questions, please reach out to firstname.lastname@example.org for help.
