Autodesk Inventor Tips: Restart, Line Command and Inferred Trim

Recently we posted ‘‘Autodesk Inventor Tips: Temporarily Disable Inferred Constraint & Close Sketch” and now we are sharing two new tips from our “120 Autodesk Inventor Tips” vault.

Our Autodesk Subject Matter Expert from i GET IT Learning created these 120 short tech tips to present at Autodesk University. Now we have shared the first eight tips in PLM Tech Talk. To get full access to all of our i GET IT Tech Tips and Training Courses, Sign Up to i GET IT for an in-depth online learning courses from i GET IT.

120 Autodesk Inventor Tips –

#7 Restart, Line Command

#7 Restart, Line Command | Autodesk Inventor

While using the Line command, typically line segments are connected one to another. If you need to create a line segment in a different part of the sketch which is not connected to the current linked line segments, you do not need to exit the command and restart the line command. This can be done while in the command is active by following these steps.

  1. While Line command is active Right-click in the graphics window.
  2. Select Restart from the Marking Menu Overflow Menu
  3. Line command restarts without ending and restarting the command.
Restart from the Marking Menu Overflow Menu

#8 Inferred Trim

#8 Inferred Trim | Autodesk Inventor

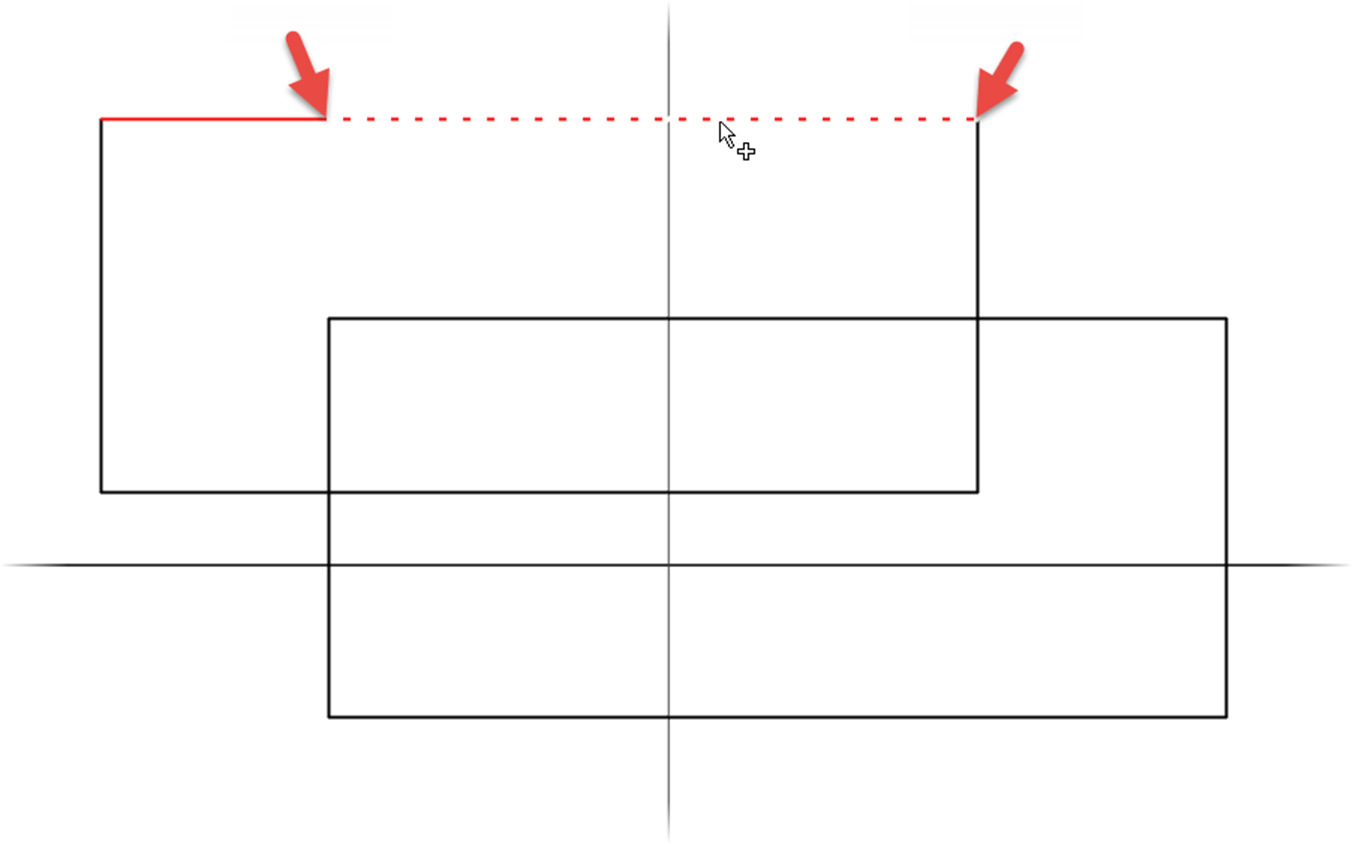

Trim segment instead of trimming a complete segment

The Trim command can infer trim sections based on the existing sketch geometry even if the segments don’t intersect.

The point in space there two sketch geometry segments would theoretically intersect is can be used as a trim point.

If you hold the Ctrl key on the keyboard you can specify the trim segment instead of trimming a complete segment if there are multiple theoretical intersections on the same geometry.

Now you know how to Restart, Line Command and use Inferred Trim! but you can get early access to all of our Tech Tips in i GET IT Tech Tip Library by Signing Up and tick 7 day free trial and gain access to our in-depth online learning courses.

For more tech tips and in-depth eLearning for Autodesk Inventor, including new courses on other design solutions, please visit https://www.myigetit.com to explore more information or Just choose appropriate subscription plan to get started! If you should have any questions, please reach out to iproducts@tatatechnologies.com for help.
