How to use Sensors for Sheet Metal | SOLIDWORKS
You can use sensors to alert you when a sheet metal body deviates from the limits specified for a bounding box.
During the design process, if the model exceeds the bounding box parameters, an alert appears in the FeatureManager. You can then double-click an alert to see the values in the Cut-List Properties dialog box.
Watch the video or follow the steps to know more –
Step 1
Right-click Sensors in the FeatureManager and select Add Sensor…
Step 2

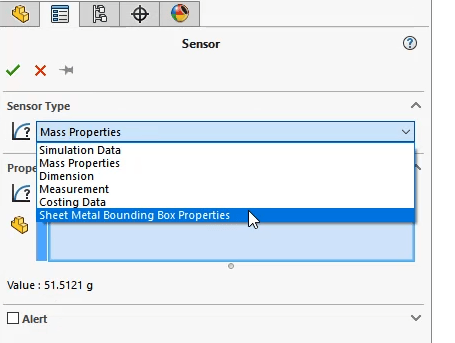

Choose Sheet Metal Bounding Box Properties from the drop-down.
Step 3
Define the Sensor Properties and ensure the Alert box is checked and click OK.

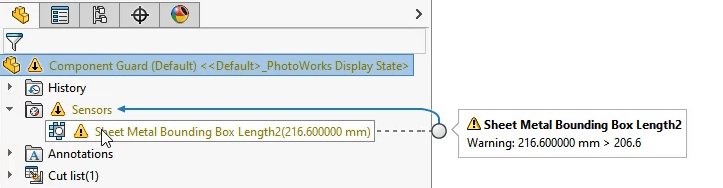

During the design process, if the model exceeds the bounding box parameters, an alert appears in the FeatureManager.

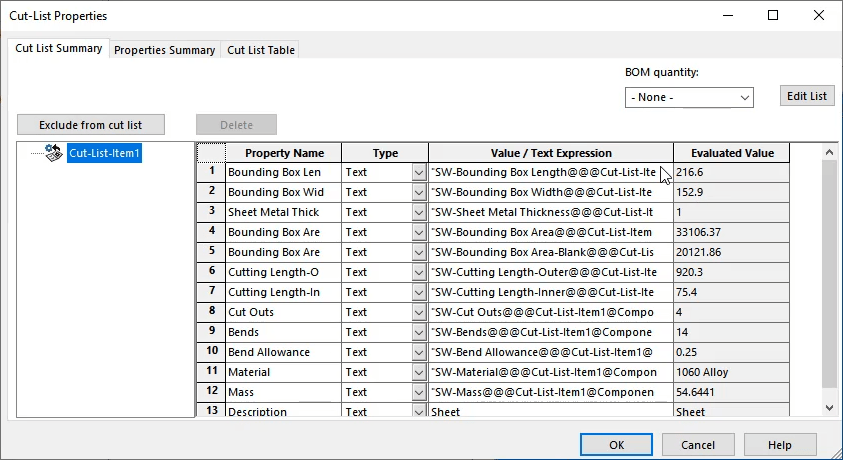

You can then double-click an alert to see the values in the Cut-List Properties dialog box.
