How to Know Number of Saved Old Versions & Select Other Edge, Face or Surface | Autodesk Inventor Tips
Recently we posted “How to use Search Browser & Old Versions| AUTODESK Inventor Tips” and now we are sharing two new tips from our “120 Autodesk Inventor Tips” vault.
Our Autodesk Subject Matter Expert from i GET IT Learning created these 120 short tech tips to present at Autodesk University. Till now we have shared the first 16 tips in PLM Tech Talk and now we are sharing next 2. To get early access to tips go to – SkillAdvisor from i GET IT (myigetit.com) and choose your role and software course relevant to you and subscribe and gain access to many other Tips. Also check out our new blog section in which we publish latest trends articles regarding ACES – Blogs – i GET IT (myigetit.com).
Follow the below videos and steps to get to know more –
120 Autodesk Inventor Tips –
#17 Number of Saved Old Versions
Step 1

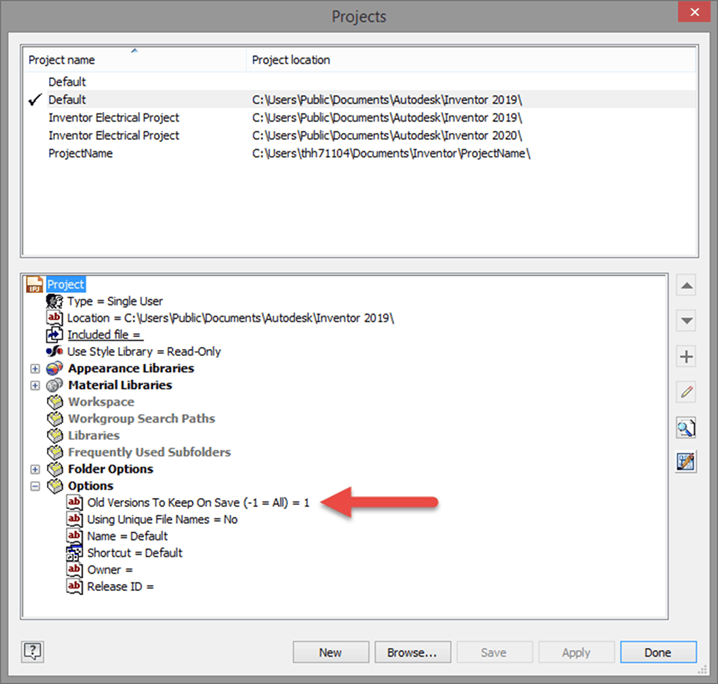

Open the Projects dialog
Step 2
Go to – Options > Old Version To Keep On Save
Step 3
Default = 1 &
-1 = All Old Versions Saved
#18 Select Other
To select an edge, face, surface, etc. that in not in front in the current view do the following steps:
Step 1
Hover over part or assembly
Step 2

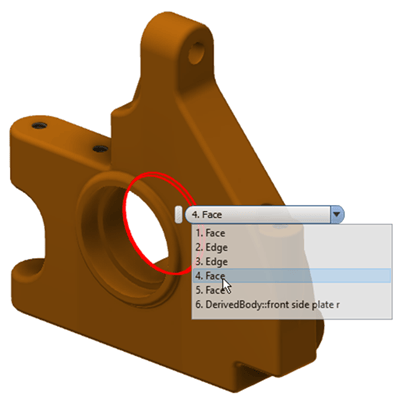

Select from Item selection dropdown list
OR
Step 1

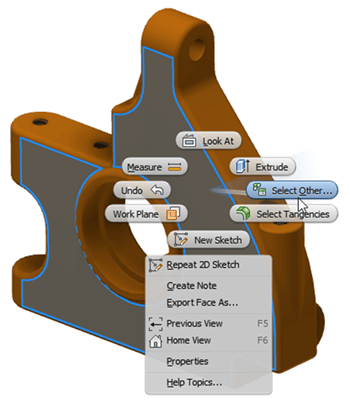

Right click on part or assembly
Step 2
Click Select Other from Marking Menu
Step 3
Select from Item selection dropdown list
